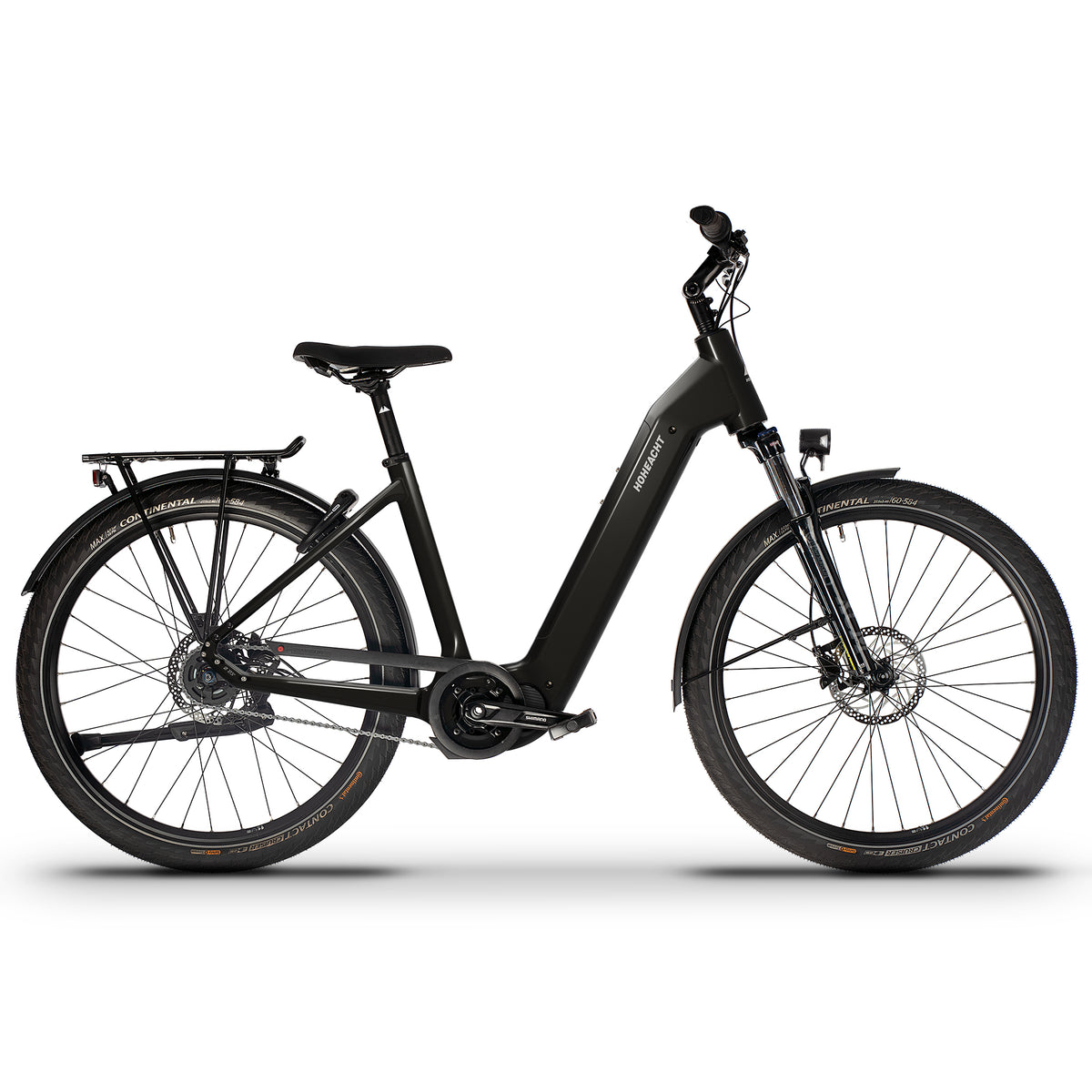

GRANDAMO Urbo – comfortable city e-bike with power
The HoheAcht GRANDAMO Urbo ensures comfort in your everyday bike life. “GRANDAMO” means “great love” and “Urbo” means “city”. The GRANDAMO models with a permissible total weight of 170 kg are just right for tall people and for extra cargo. In comparison, the AMO models are approved for up to 140 kg.
The 85 Nm strong Shimano EP6 motor lets you conquer your city with more power than ever. The Suntour suspension fork with 100 mm travel offers comfortable driving pleasure.
AREA OF USAGE
City | Commuting | Forest and forestry paths – perfect for the city for shopping with extra cargo or for tours and excursions
MOTOR
Shimano Steps, DU-EP6, 25km/h, 85 Nm, mid-motor
Even demanding e-bikers who prefer advanced features, comprehensive connectivity and user-friendly handling will be completely satisfied with the revolutionary EP6. The EP6 platform offers all the modern features of the EP8 and brings outstanding added value for various types of riders, be it for demanding MTB adventures or relaxed city exploration.
SHIFTING SYSTEM
Shimano Steps, Nexus SG-C7000, 5-speed hub gear with freewheel, offers not only 5 gears, but also exceptional robustness and durability. This makes it seamlessly compatible with mid-motors.
Frame |
Wave, aluminum |
Rear brake |
Shimano, BR-MT420, four-piston |
Suspension fork |
SR Suntour, XCM32, 100 mm travel |
Brake disc front |
Shimano, FW SM-RT64, 180 mm, Center lock, RW RT-EM600 |
Handlebar |
HoheAcht, 31.8 mm, width 660 mm, bend 37°, rise 28 mm, aluminum, black |
Brake disc rear |
Shimano, FW SM-RT64, 180 mm, center lock, RW RT-EM600 |
Stem |
HoheAcht, 31,8 mm, 90 mm, 0-60°, aluminum, black |
Saddle |
Selle Royal, Nuvola 5060 DRC |
Grips |
Herrmans, LINE, 125 mm / 90 mm |
Seatpost |
HoheAcht, Seatpost 2D, 31,6 mm x 350 mm, 10 mm offset, aluminum |
Headset |
ACROS, zs56, zs66, industrial bearings, integrated cable routing |
Rack |
AtranVelo, Tour 365 BS H-Cargo, 27 kg payload |
Rim |
Mach1, Trucky 30, 27,5'', aluminum, black |
Front light |
Herrmans, H-BLACK MR8 E-BIKE 6-12 V, LED, 3.3 W, 180 lm, reflector |
Wheel size |
27,5 inch |
Rear light |
Herrmans, H-CARGO E-BIKE 6-12 V, 4 LEDs, 0.6 W, integrated, parking light, BR-12 reflector |
Tyres |
Continental, CONTACT Cruiser, 27.5'' x 2.4'' (60-584), reflex |
Mudguard |
ChingChern, aluminum, powder-coated |
Front wheel hub |
Formula, CL-81, Disc, 15 x 100 mm, industrial bearings |
Battery & frame lock |
ABUS, 5755L NR BK OE; ABUS, BLO SHI IT2 X+; |
Rear wheel hub |
Shimano, Nexus, SG-C7000, 5-speed, freewheel, center lock |
Side stand |
Ursus, R81 Wave, KSA 40 mm, rear |
Sprocket |
Gates, CDX pulley, 28 teeth |
Pedals |
Marwi, SP-828 Black SBL, aluminum with PP |
Drive belt |
Gates, 122T CDX, blue |
Motor |
Shimano Steps, DU-EP6, 25km/h, 85 Nm, mid-motor |
Crankset |
Chainring Gates, 39T CDX + Spider + trouser guard ring, aluminum |
Battery |
Shimano Steps, BT-EN806, 630 Wh, integrated |
Crank arm set Shimano Steps, FC-EM600, 170 mm |
Display |
Shimano Steps, SC-EN600, Bluetooth, ANT private |
|
Derailleur |
Shimano Steps, Nexus SG-C7000, 5-speed hub gear, freewheel |
Charger |
Shimano Steps, EC-E8004, 4 A |
Shift lever |
Shimano, Nexus, SL-C7000, 5 speed, twist shifter |
Weight |
From 29,0 kg |
Front brake |
Shimano, BR-MT420, four-piston |
Max. permissible weight |
170 kg |
General product information: Prices and colors are subject to change. TechniBike reserves the right to replace named components from one manufacturer with equivalents from another well-known manufacturer if they are not available. The weights of the bikes are based on painted pre-production frames at the time of publication, the actual weight may also vary.
| Frame size (cm) | 48 | 55 | 61 |
| Seat tube (mm) | 480 | 550 | 610 |
| Top tube horizontal (mm) | 618 | 643 | 668 |
| Head tube (mm) | 195 | 215 | 215 |
| Wheelbase (mm) | 1183 | 1210 | 1235 |
| Chainstays (mm) | 484 | 484 | 484 |
| Bottom bracket height (mm) | 286 | 286 | 286 |
| Head tube angle (°) | 69 | 69 | 69 |
| Seat angle (°) | 74 | 74 | 74 |
| Stack (mm) | 680 | 698 | 698 |
| Reach (mm) | 423 | 442 | 468 |
| Body height (cm) | 165 - 175 | 175 - 185 | 185 - 195 |
