BESTA Roko | 2022 - the solid carbon fully

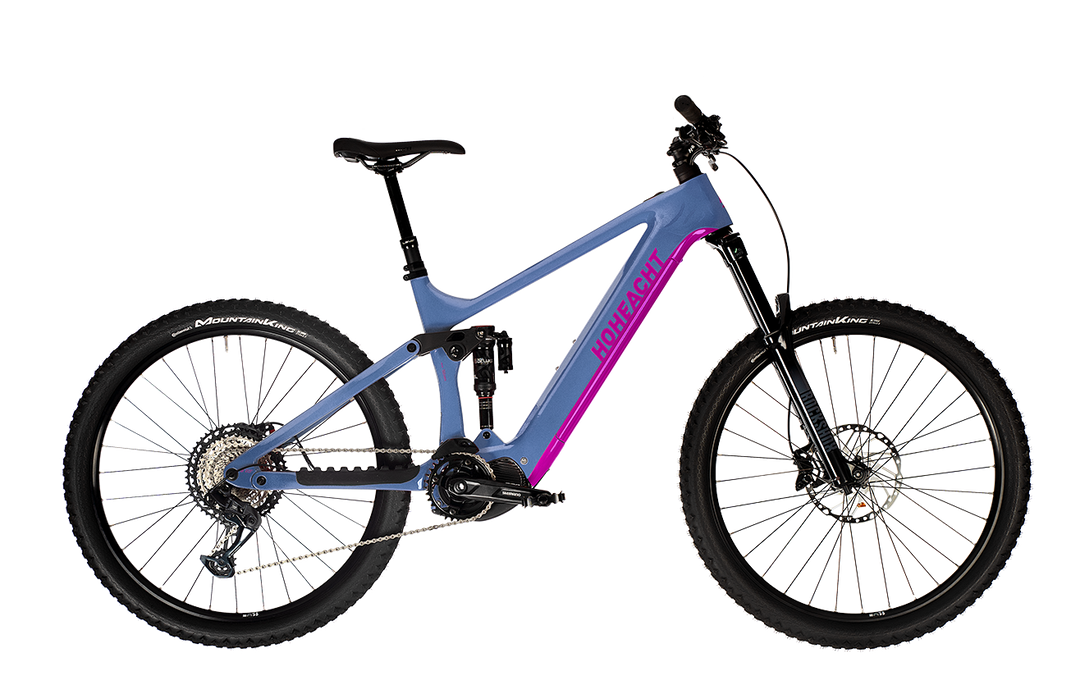

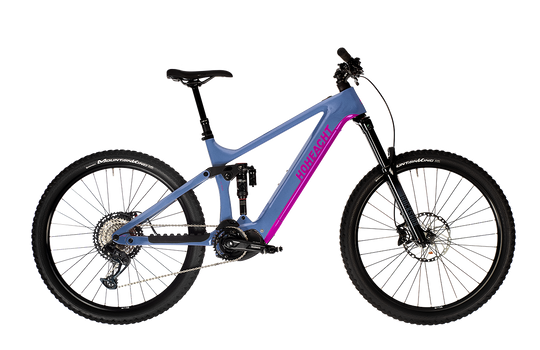

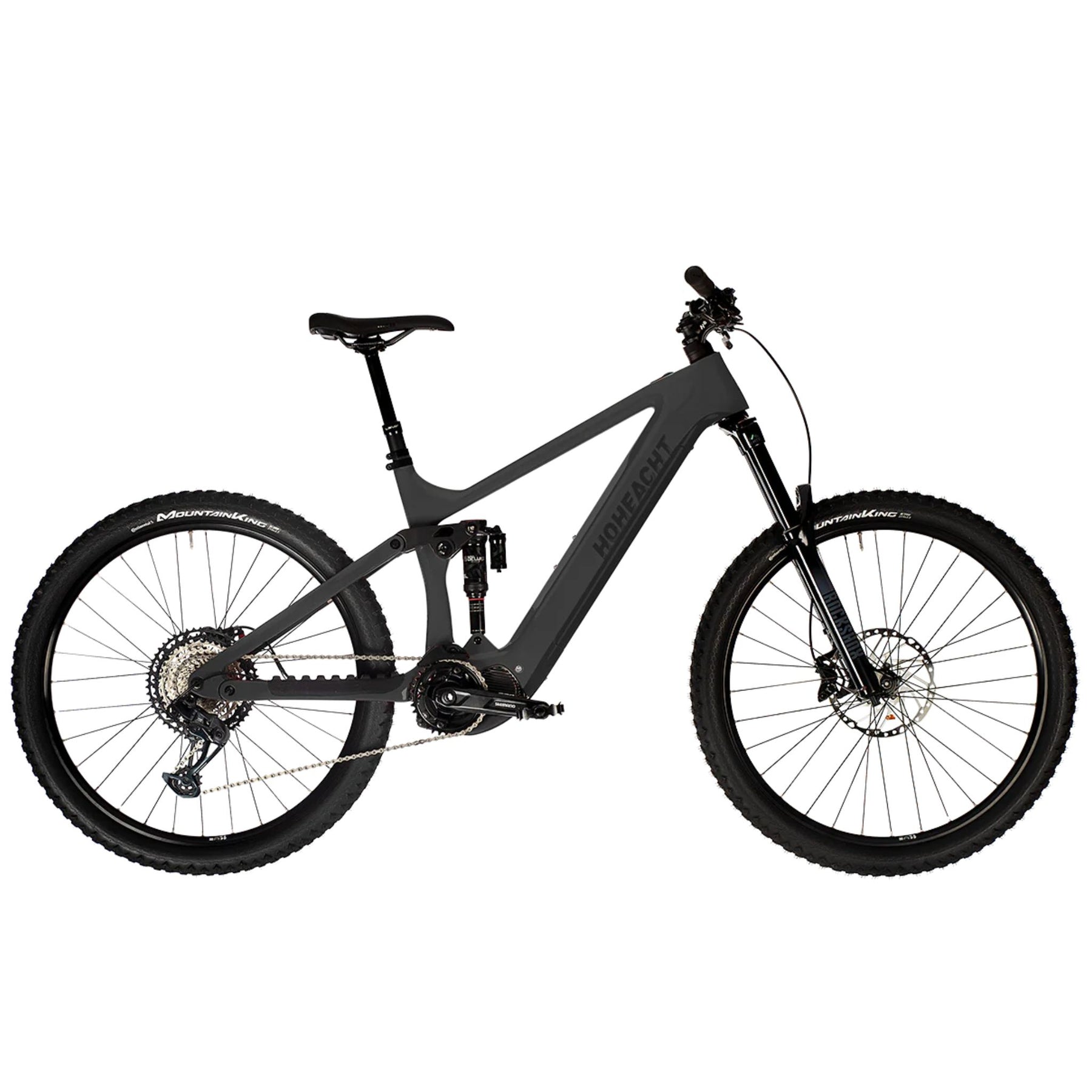

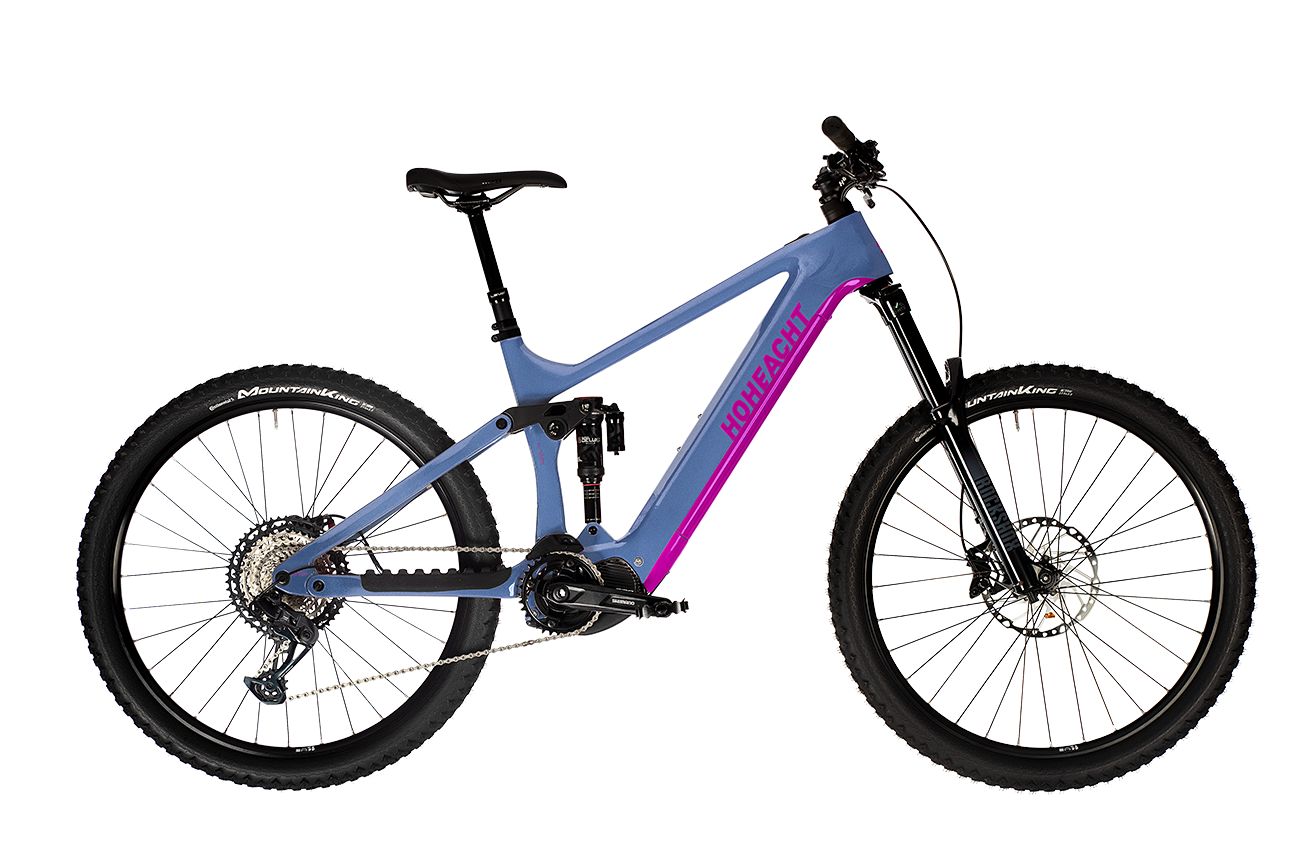

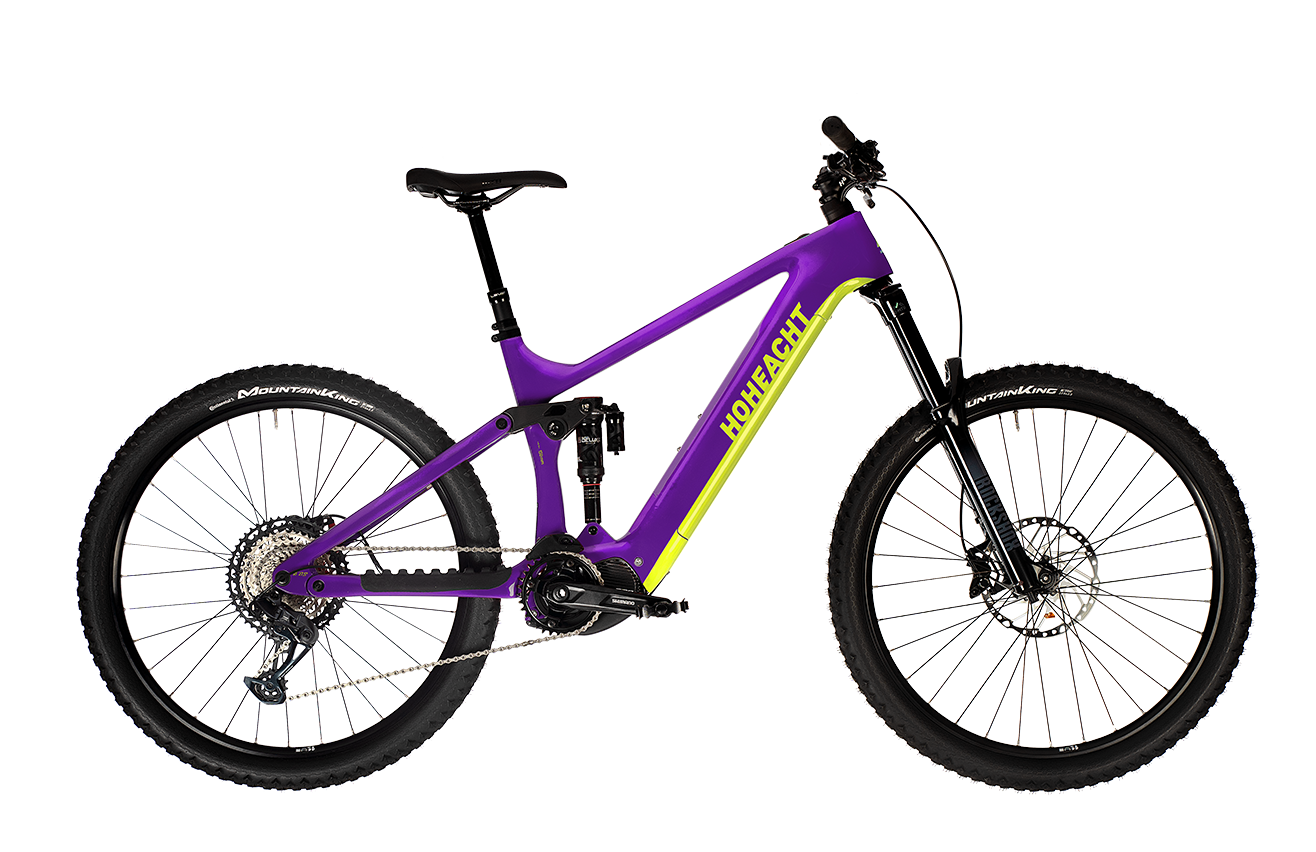

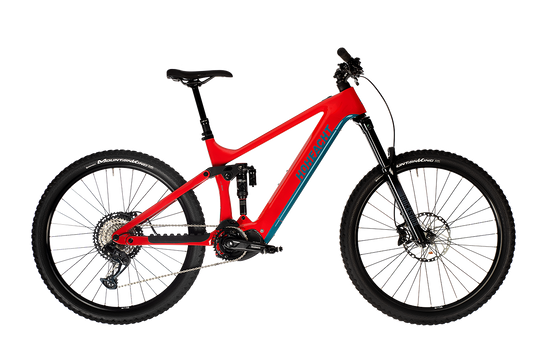

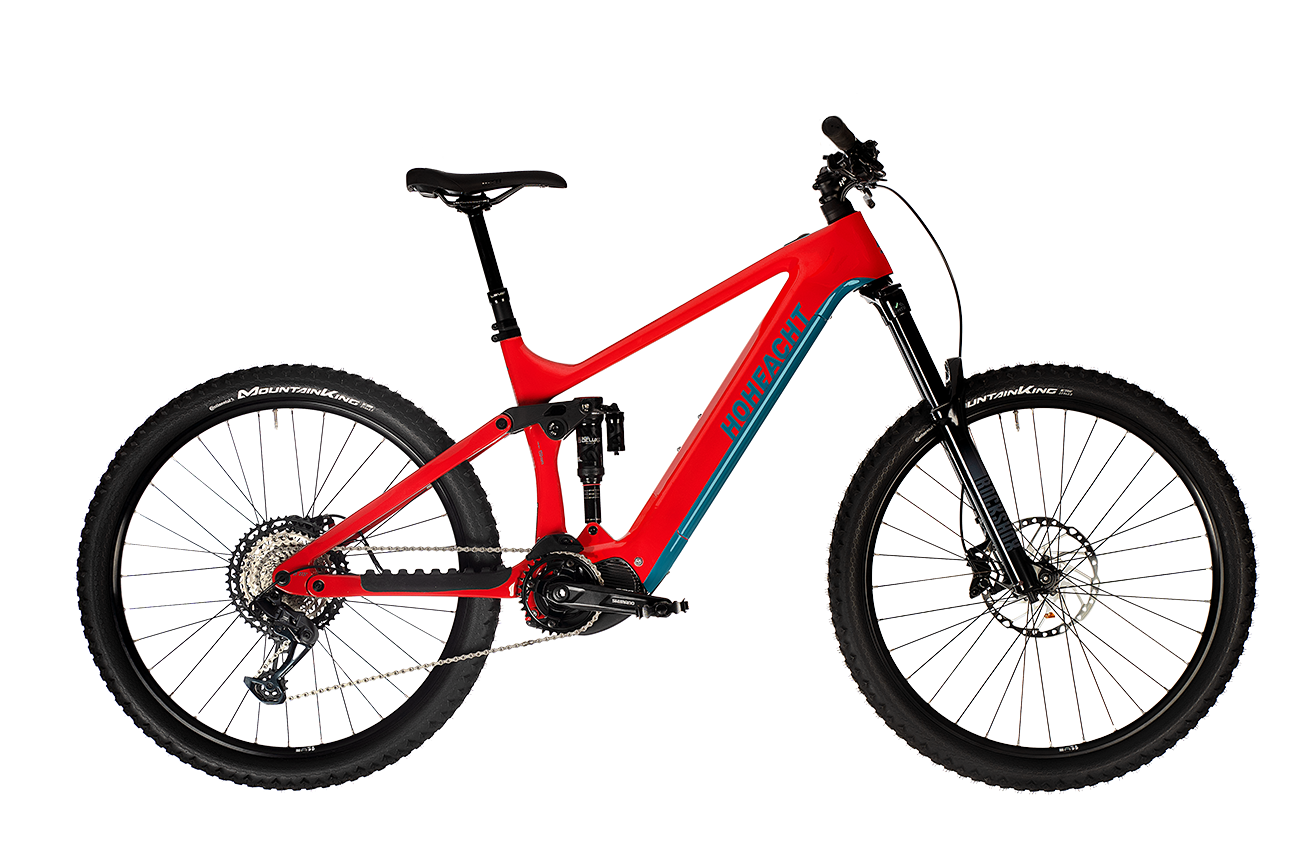

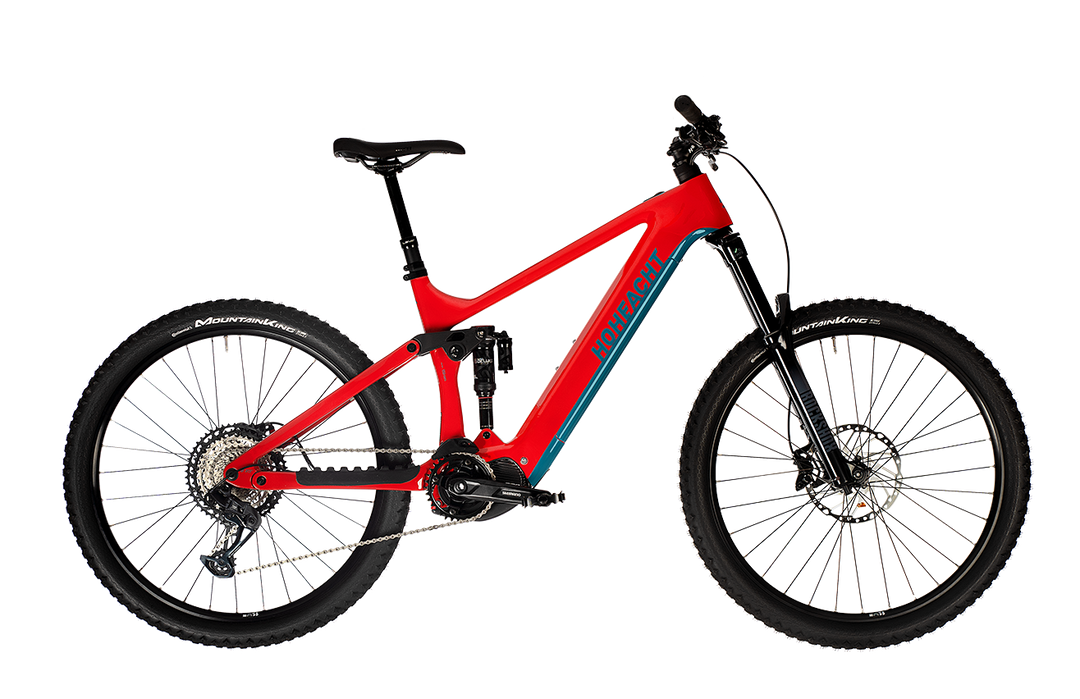

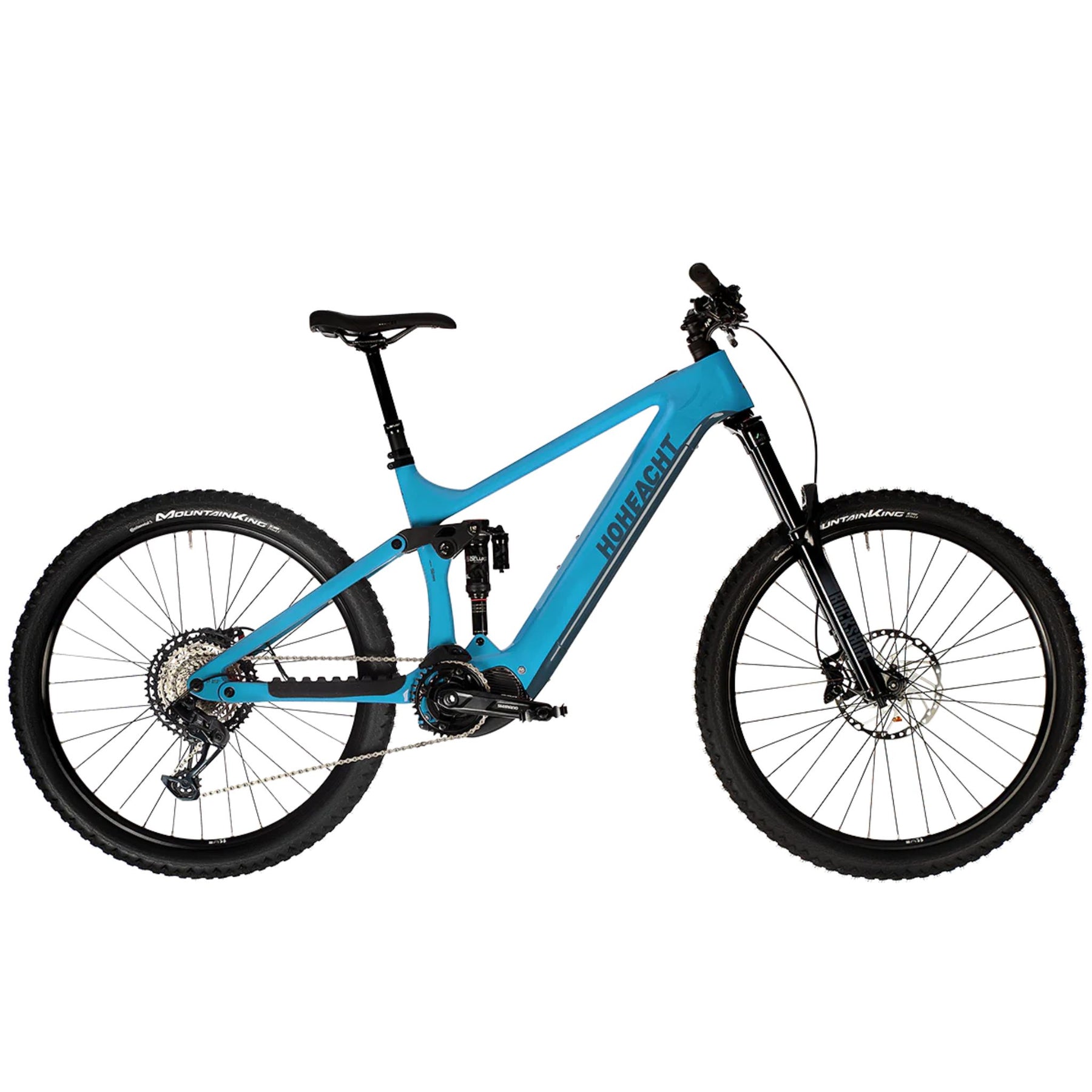

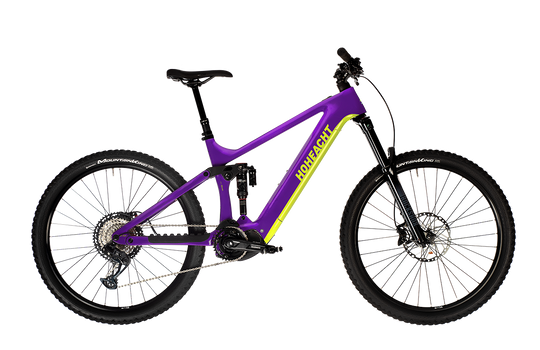

The HoheAcht BESTA Roko | 2022 comes from the production year 2022 and is a solidly equipped carbon E-MTB with a reliable RockShox chassis. The all-mountain bike can handle all ups and downs and is extremely versatile, reliable and offers a high level of comfort. It can also keep up in the enduro area, i.e. in downhill performance, speed and drops. The 85 Nm Shimano EP8 motor with 630 Wh battery ensures great driving fun and plenty of power on the mountains. The solid features of the BESTA Roko | 2022 make it a great bike for all E-MTB enthusiasts.
AREA OF APPLICATION
All Mountain | Enduro - suitable for longer tours in flat terrain, uphill and downhill rides on up to moderately difficult trails as well as for smaller jumps and drops
Motor

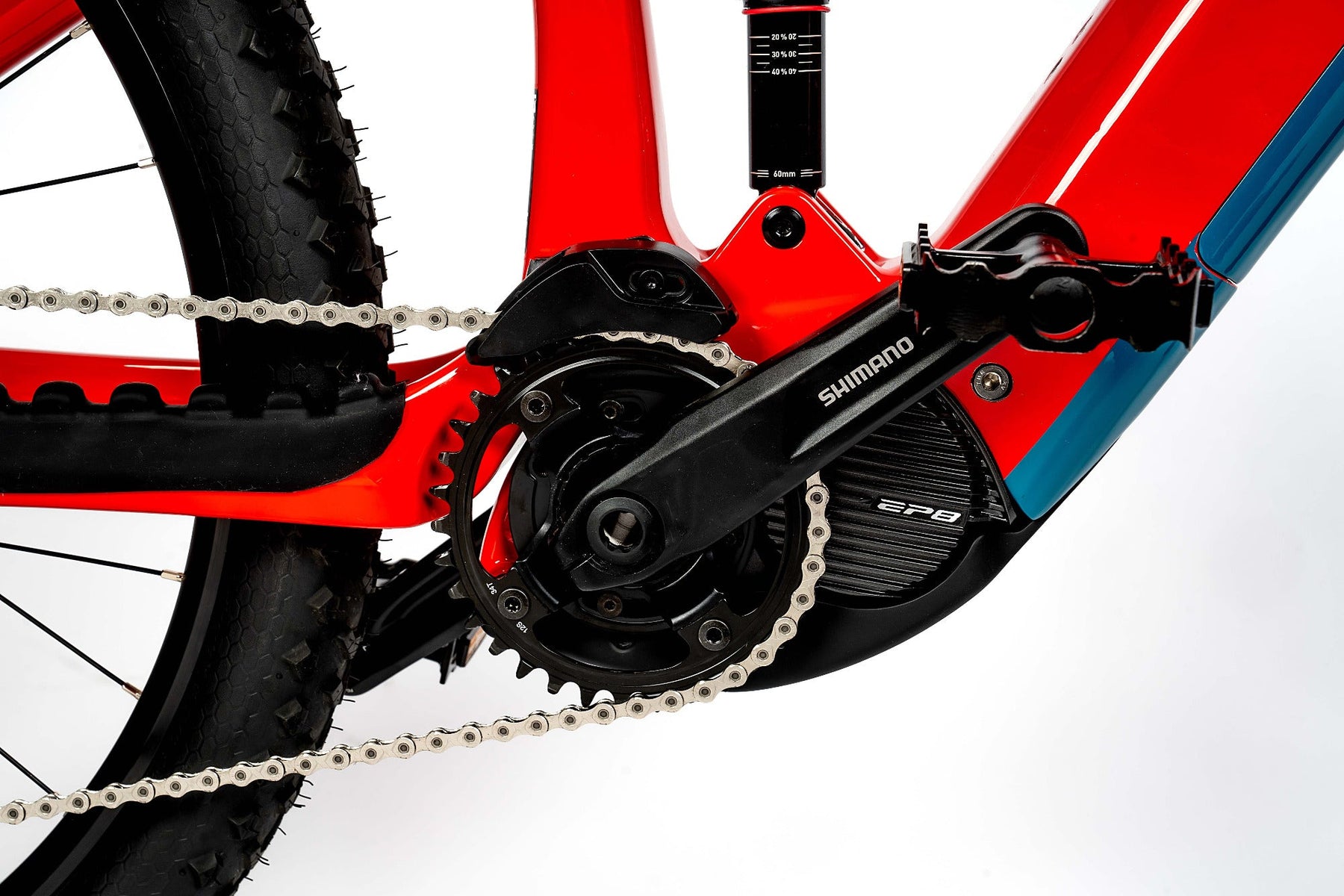

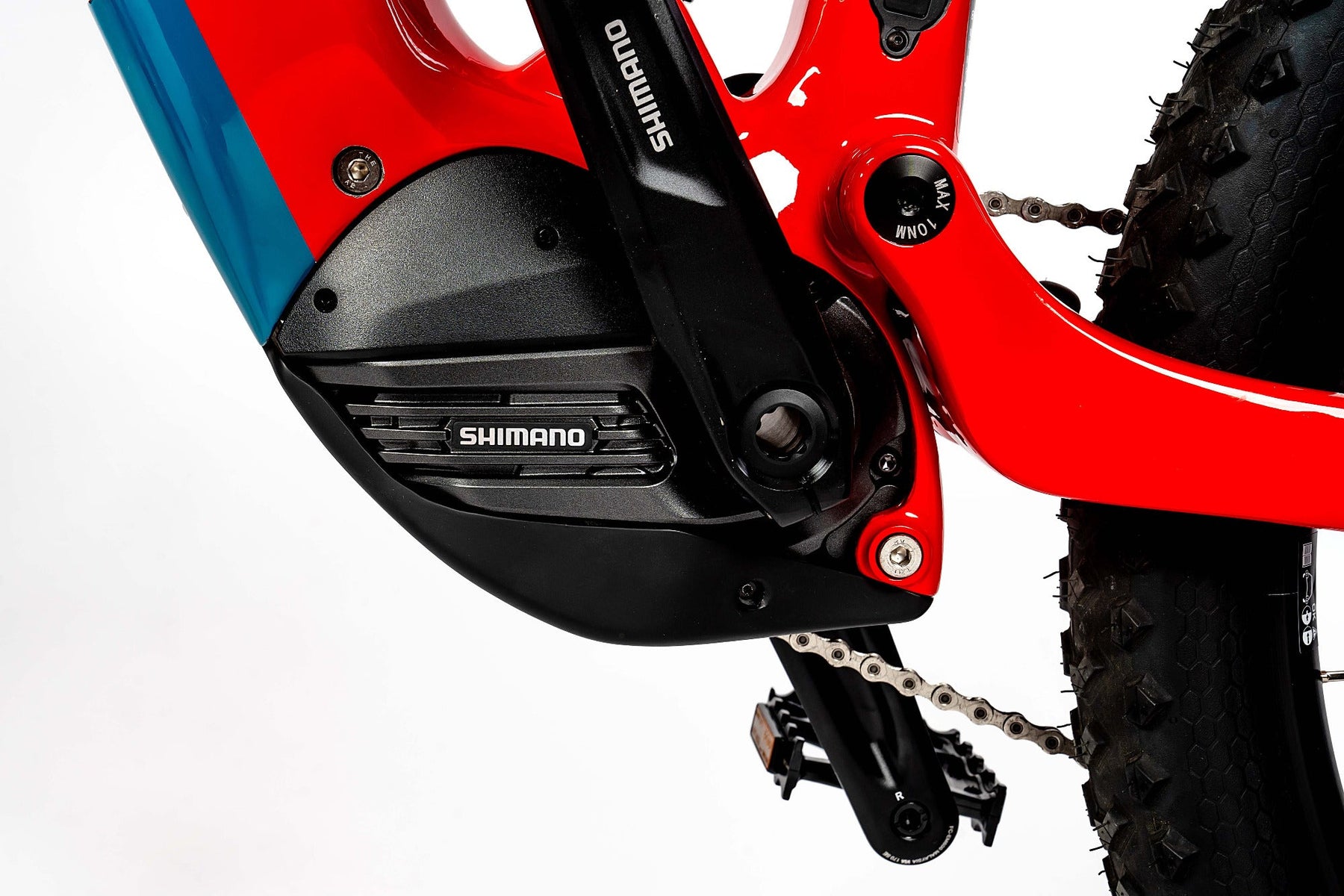

Shimano Steps, DU-EP8, 25 km/h, 85 Nm, mid-motor
For a more natural Riding experience, the Shimano Steps EP8 drive unit allows riders to focus on the road and enjoy the ride. The quiet and compact motor reduces pedaling resistance and offers 20% more range. The EP8 drive unit is compatible with a wide range of options and offers an output power of up to 85Nm for a light and refined feeling of assistance power.
SHIFTING SYSTEM

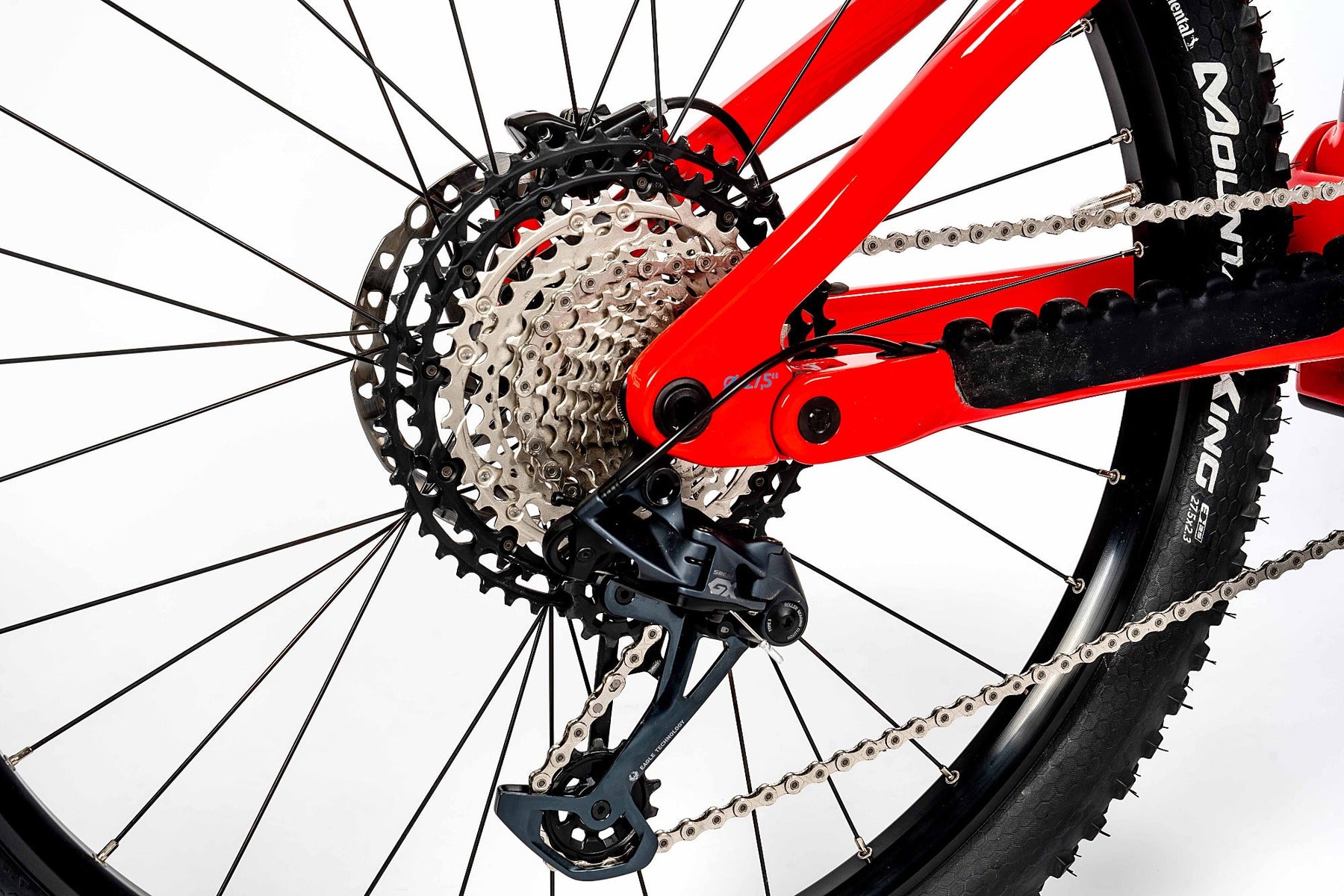

The SX Eagle rear derailleur from SRAM is specially designed for 12-speed gears and has a robust steel housing. The Cage Lock™ feature allows for quick removal and attachment of the rear wheel when necessary and also makes installing the chain easier. Thanks to the X-Sync™ tooth design and the X-Horizon™ cage shape, optimal chain hold is ensured and precise shifting is possible.
Ausstattung
Komponente | Beschreibung |
---|---|
Rahmen | Carbon Fullsuspension |

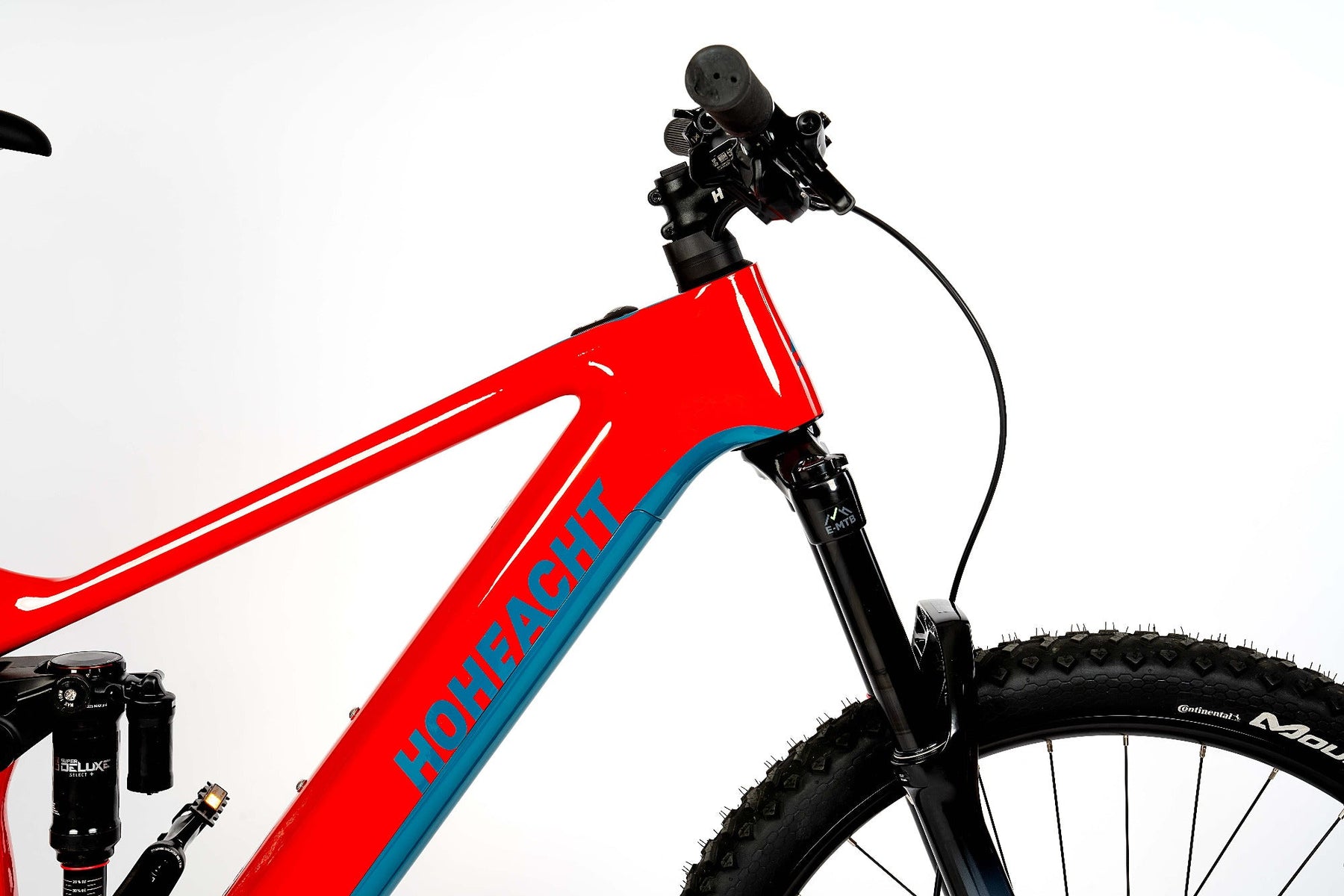

suspension fork | RockShox, 35 Gold RL, 160 mm Federweg |

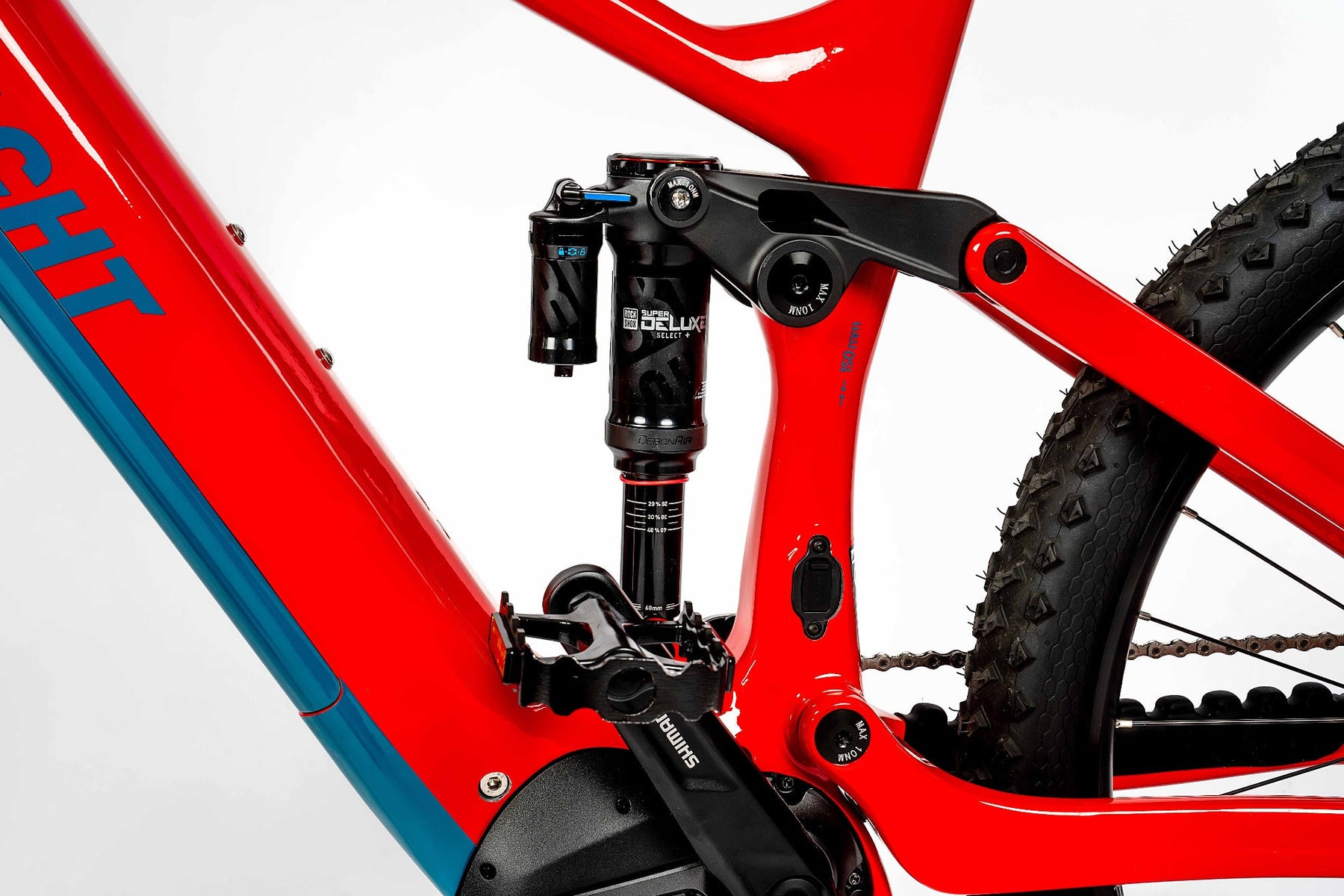

Dämpfer | RockShox, Super Deluxe Select, 150 mm Federweg |

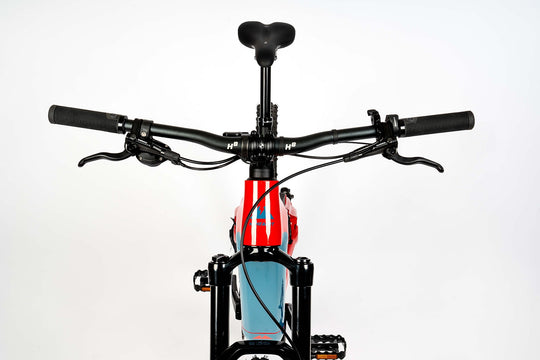

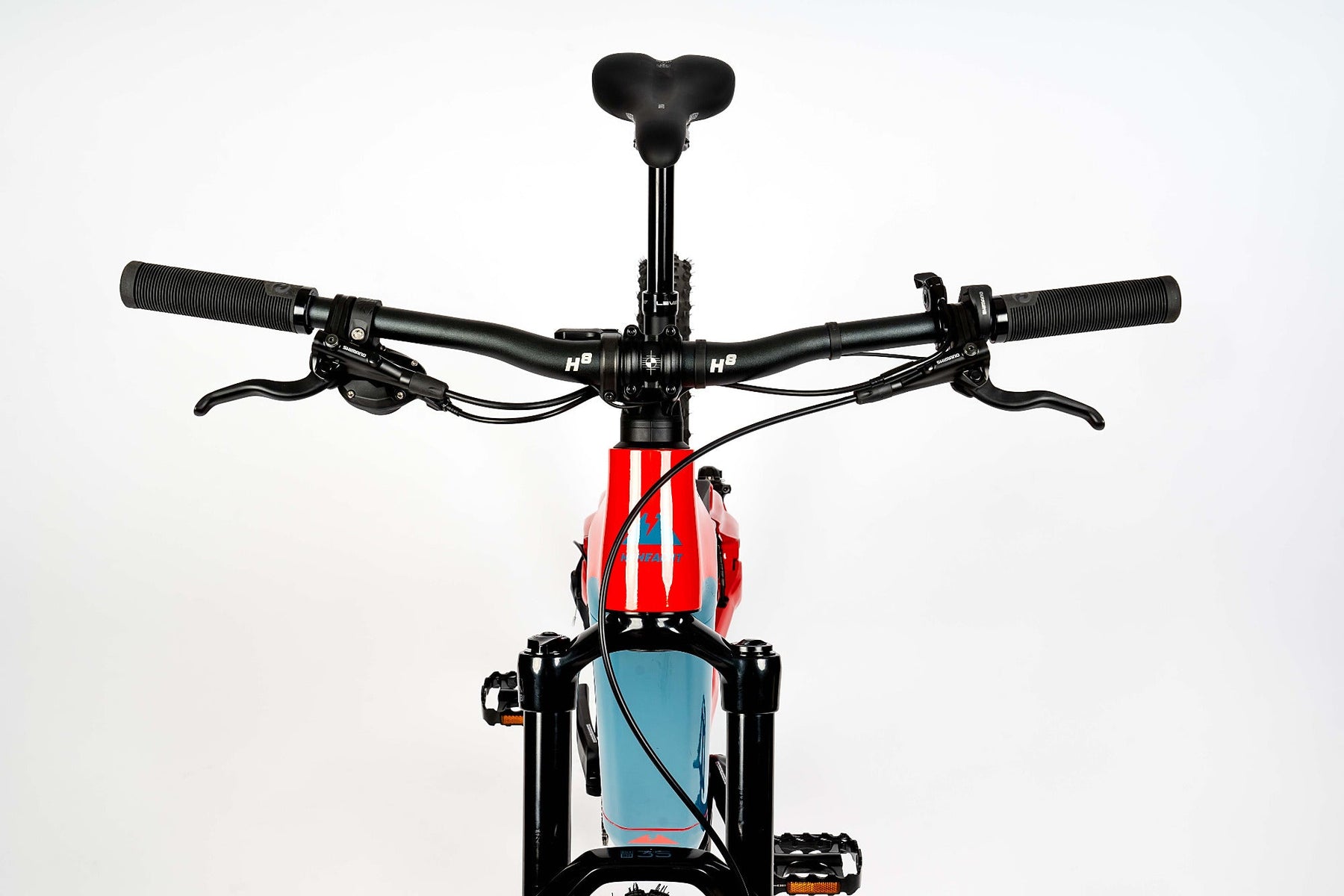

Lenker | HoheAcht, 31,8 mm, Breite bei RH S: 720 mm, bei RH M, L, XL: 780 mm, Biegung 9°, Rise 15 mm, Aluminium, schwarz |
Vorbau | HoheAcht, 60 mm, ±7°, Aluminium, schwarz |
Griffe | Herrmans, Rib single lock, 130 mm |
Steuersatz | ACROS, zs56, zs66, industriegelagert, Stem Cap SP-Connect |
Felge VR | Mach1, Trucky 30, 29'', Aluminium, schwarz |
Felge HR | Mach1, Trucky 30, 27.5'', Aluminium, schwarz |
Laufradgröße | Mullet: VR: 29 Zoll, HR: 27.5 Zoll |
Reifen VR | Kenda, Regolith, 29'' x 2.4'' (61-622) |
Reifen HR | Kenda, Regolith, 27.5'' x 2.4'' (61-584) |
Vorderradnabe | Formula, CL-811, Disc, 15 x 110 mm, industriegelagert |
Hinterradnabe | Formula, CL-148S, Disc, 12 x 148 mm, industriegelagert, Boost |
Zahnkranz | SRAM, EAGLE, CS-PG-1210, 12-fach, 11-50 Zähne |
Kette | SRAM, SX Eagle 12 S |
Kurbelsatz | Kettenblatt Shimano STEPS, SM-CRE80, 34 Zähne, Stahl/Aluminium |
Kurbelarmset | Shimano STEPS, FC-EM600, 170 mm |
Schaltwerk | SRAM, SX Eagle, RD-SX-1-B1, 12-Gang Kettenschaltung, Freilauf |

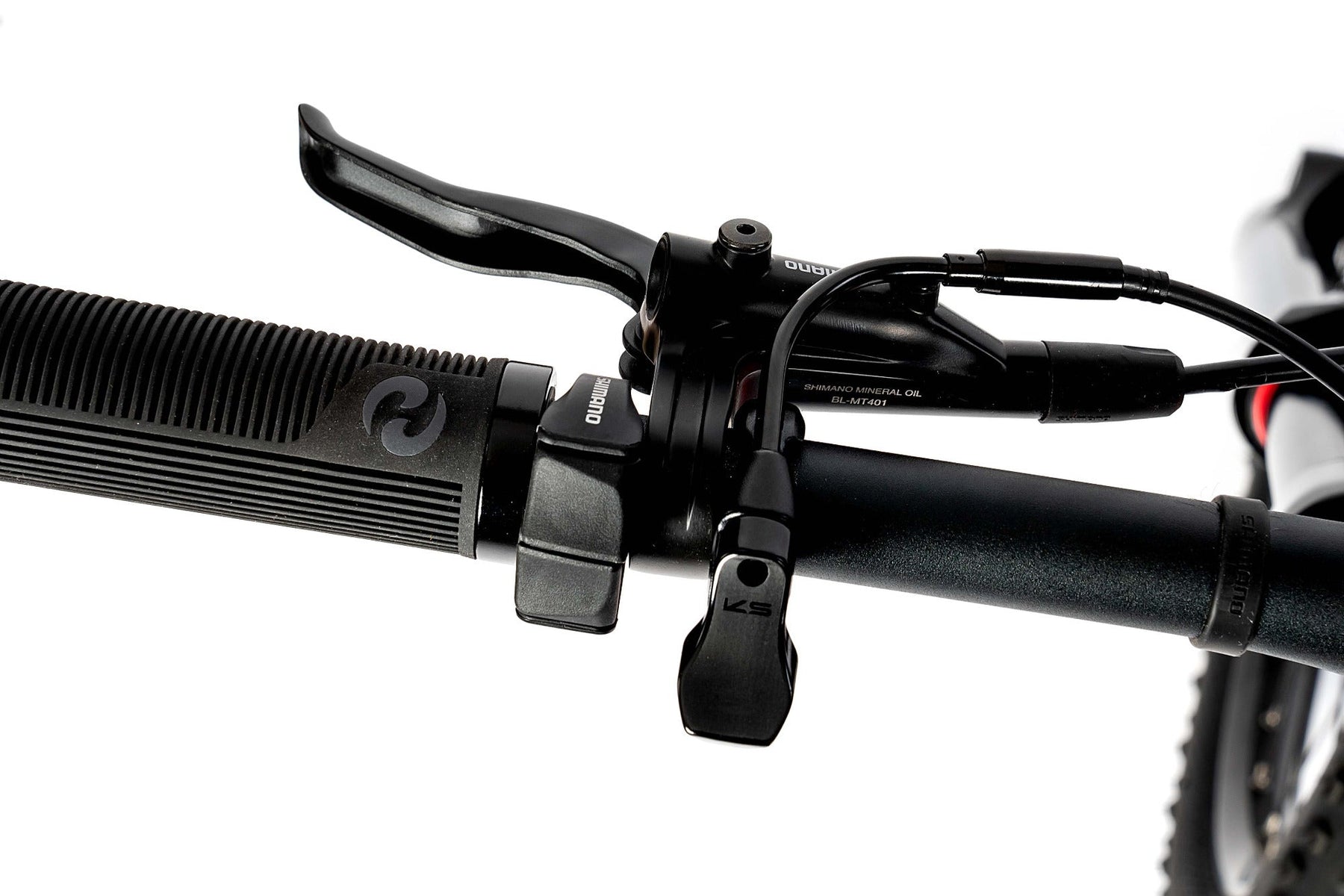

Schalthebel | SRAM, SX Eagle, TRIGGER, SL-SX1-PA-A1, 12-fach |
Bremse vorne | Shimano, BR-MT420, Vierkolben, hydraulische Scheibenbremsen |
Bremse hinten | Shimano, BR-MT410, hydraulische Scheibenbremsen |
Bremsscheibe vorne | Shimano, SM-RT64, 180 mm, Centerlock |
Bremsscheibe hinten | Shimano, RT-EM600, 180 mm, Centerlock |

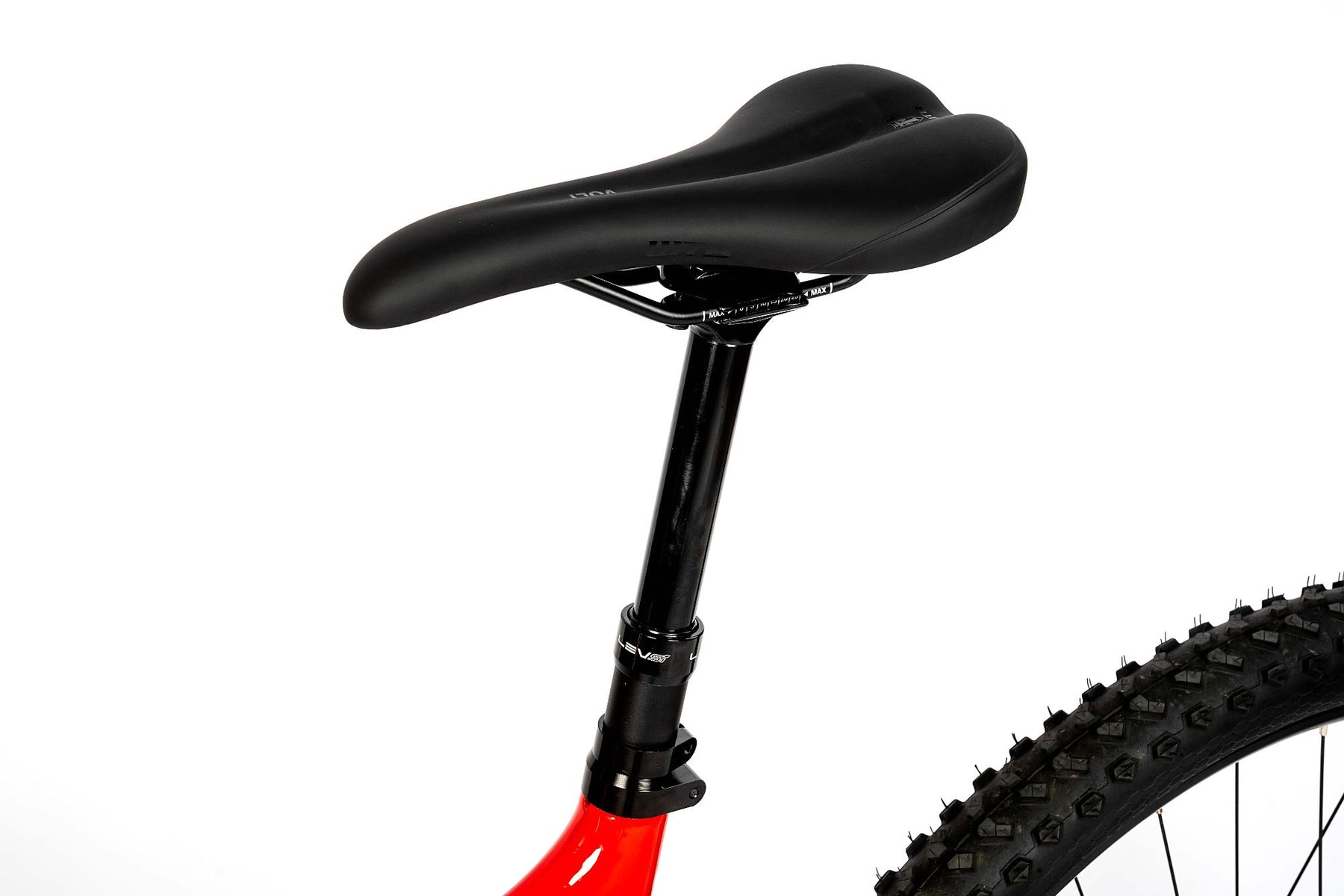

Sattel | WTB, Volt |

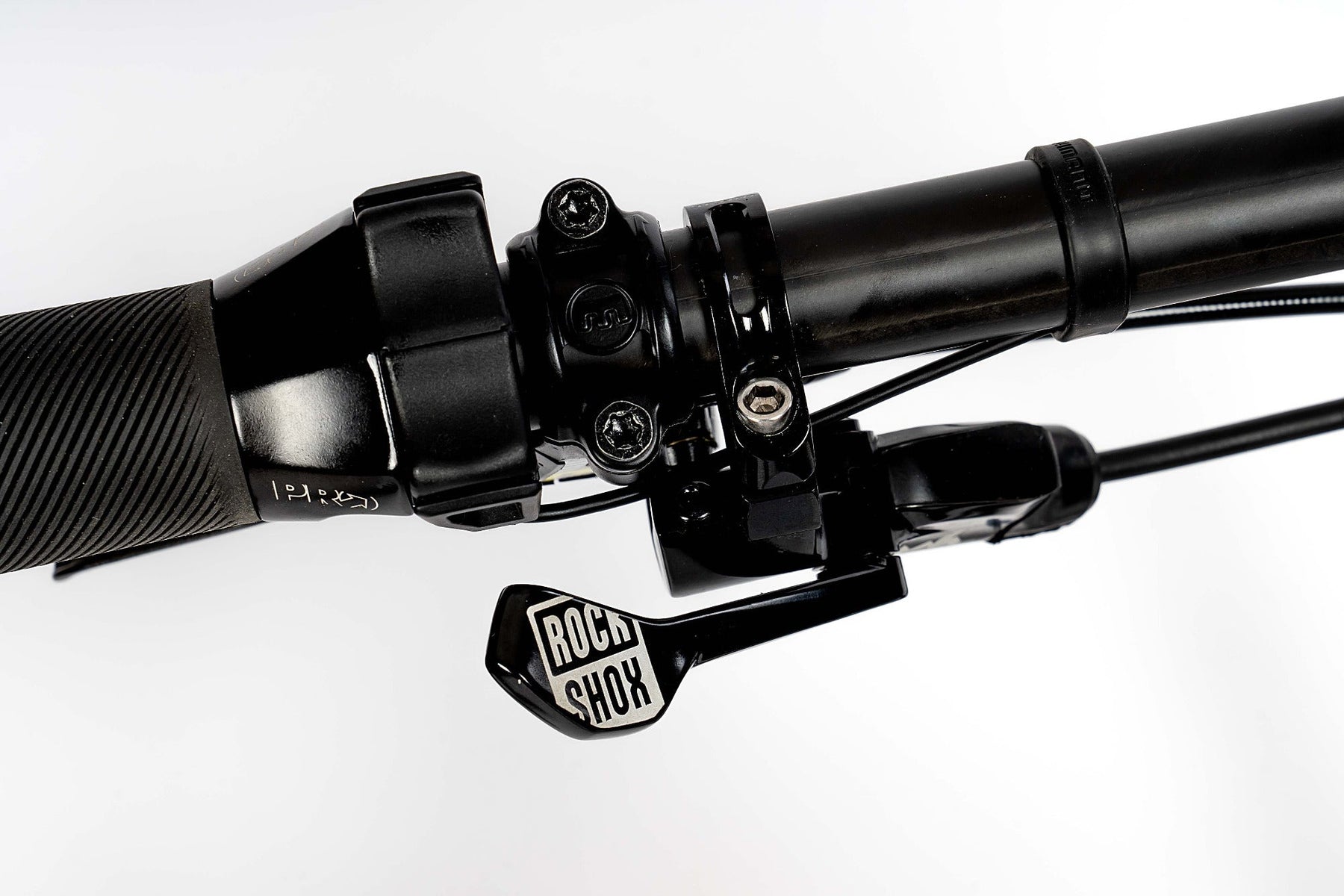

Sattelstütze | Kind Shock, Dropper SP, LEV Si Integra Remote, 31,6 mm x 395 mm / 125 mm, Aluminium |
Frontlicht | M-WAVE, Atlas K 50, StVZO Batterieleuchten-Set, Hochleistungs-LED, 42 lm |
Rücklicht | M-WAVE, Atlas K 50, StVZO Batterieleuchten-Set, Hochleistungs-LED, 6 lm |
Akkuschloss | ABUS, BLO SHI IT2 XPLUS |
Pedale | Marwi, SP-160 BL, Aluminium |
Motor | Shimano Steps, DU-EP8, 25 km/h, 85 Nm, Mittelmotor |
Akku | Shimano Steps, BT-E8036, 630 Wh, integriert. Leicht entnehmbarer Akku, z. B. zum Laden. |

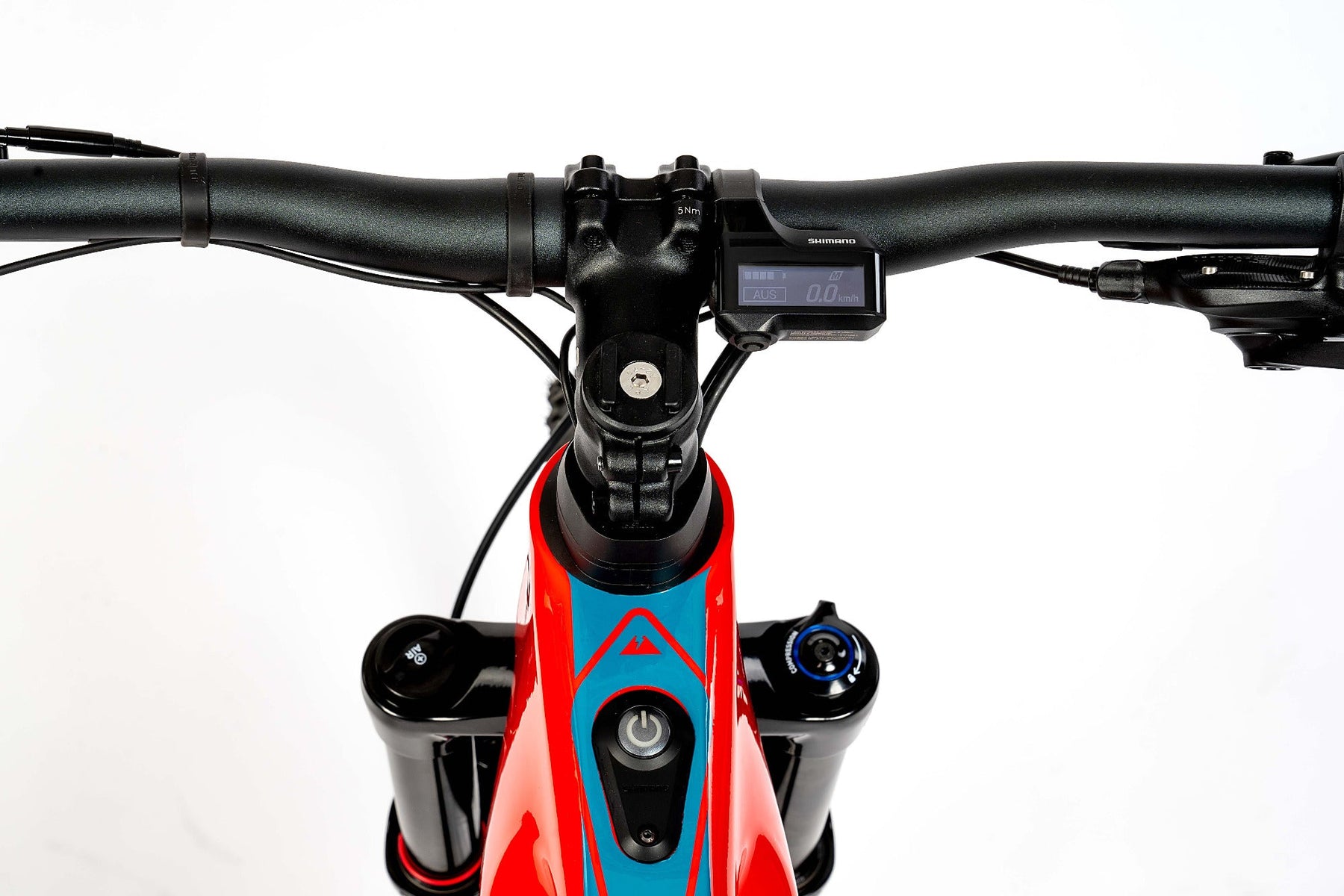

Display | Shimano Steps, SC-E7000, Bluetooth, ANT Private |
Ladegerät | Shimano Steps, EC-E6002, 2 A |
Gewicht | Ab 22,9 kg |
Zulässiges Gesamtgewicht | 140 kg |
Allgemeine Produkthinweise: Preis- und Farbänderungen vorbehalten. TechniBike behält sich vor, benannte Bauteile eines Herstellers bei fehlender Verfügbarkeit durch Gleichwertige eines anderen namhaften Herstellers zu ersetzen. Die Gewichtsangaben der Bikes basieren auf lackierten Vorserienrahmen zum Zeitpunkt der Veröffentlichung, das tatsächliche Gewicht kann ebenfalls hiervon abweichen.
Geometriedaten

Rahmengröße (cm) | 40 | 44 | 48 | 52 |
Sitzrohr (mm) | 400 | 440 | 480 | 520 |
Oberrohr (mm) | 585 | 605 | 630 | 655 |
Steuerrohr (mm) | 105 | 115 | 125 | 135 |
Radstand (mm) | 1230 | 1252 | 1279 | 1305 |
Kettenstrebe (mm) | 450 | 450 | 450 | 450 |
Tretlagerhöhe (mm) | 336 | 336 | 336 | 336 |
Lenkwinkel (°) | 64,5 | 64,5 | 64,5 | 64,5 |
Sitzwinkel (°) | 76,5 | 76,5 | 76,5 | 76,5 |
Stack (mm) | 610 | 619 | 628 | 637 |
Reach (mm) | 443 | 460 | 483 | 505 |
Körpergröße (cm) | 155 - 165 | 165 - 175 | 175 - 185 | 185 - 195 |
