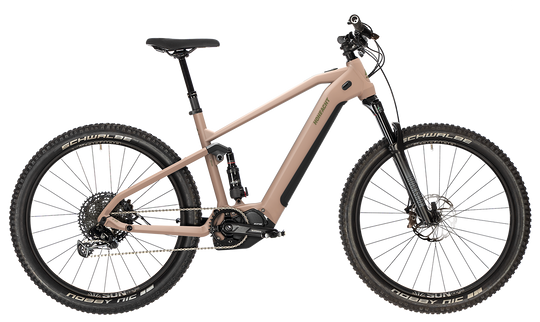

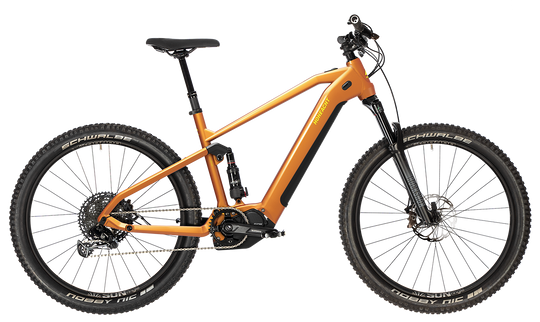

MOLA Monto – E-fully with a class of its own
The HoheAcht MOLA Monto is our E-MTB with a class of its own. The touring fully combines a lot of riding fun with excellent equipment for every mountain bike fan. The chassis, consisting of the RockShox 35 Silver TK fork and the RockShox Deluxe Select+ shock, each with 120 mm of travel, irons out almost all unevenness. Even coarser steps and small jumps can be mastered.
The 12-speed SRAM NX Eagle rear derailleur works on the 27.5" Boost rear wheel. With the 11-50 sprocket package, the gear ratio is an advantage on steep climbs and in tough terrain. The MOLA Monto is also really fun going downhill. The SUNRingléDüroc SD37 Expert Boost system wheels with 2.6 inch Schwalbe tyres help our Trail Fully to achieve excellent cornering.
Discover the MOLA Monto for yourself!
AREA OF USAGE
All Mountain
MOTOR
Shimano Steps, DU-EP801, 25 km/h, 85 Nm, mid-motor
Discover the next level of e-bike riding with the Shimano Steps DU-EP801 mid-motor. With a powerful torque of 85 Nm and a maximum assist speed of 25 km/h, you will experience a completely new driving experience. Thanks to its position in the bottom bracket area, the mid-motor provides balanced weight distribution and a natural riding experience while helping you climb hills and cover long distances with ease.
SHIFTING SYSTEM
The high-quality SRAM NX Eagle 12-speed derailleur gear allows you to achieve precise and reliable shifting behaviour on any terrain. With the SRAM NX Eagle rear derailleur and the matching shifters, you always have full control of your ride and can effortlessly switch between gears. No matter whether you're conquering steep climbs or enjoying rapid descents, the gears guarantee an optimal driving experience and make every ride a pure pleasure.
Ausstattung
Komponente | Ausführung |
---|---|
Rahmen | Fullsuspension, Aluminium |
suspension fork | RockShox, 35 SILVER TK, 120 mm Federweg |
Dämpfer | RockShox, Deluxe Select+, 120 mm Federweg |
Lenker | HoheAcht, 31,8 mm, Breite 720 mm, Biegung 9°, Rise 15 mm, Aluminium, schwarz |
Vorbau | HoheAcht, 60 mm, ±7°, Aluminium, schwarz |
Griffe | Velo Plastic, Vexk, 135 mm |
Steuersatz | ACROS, zs44, zs56, industriegelagert |
Felge | SUNRinglé, Düroc SD37 Expert 27,5'', Aluminium, schwarz, TLR |
Laufradgröße | 27,5 Zoll |
Reifen | Schwalbe, Nobby Nic Evo, 27.5'' x 2.6'' (65-584) |
Vorderradnabe | SUNRinglé, Düroc SD37 Expert 27,5'', Disc, 15 x 110 mm, Boost |
Hinterradnabe | SUNRinglé, Düroc SD37 Expert 27,5'', Disc, 12 x 148 mm, Boost |
Zahnkranz | SRAM, EAGLE, CS-PG-1210, 12-fach, 11-50 Zähne |
Kette | YBN, S12e S2 |
Kurbelsatz | Kettenblatt Shimano Steps, SM-CRE80, 36 Zähne, Stahl/Aluminium |
Kurbelarmset | Shimano Steps, FC-EM600, 170 mm |
Schalthebel | SRAM, NX Eagle, TRIGGER, SL-NX1-PA-B1, 12-fach |
Bremse vorne | SRAM, DB-DB8-A1, Vierkolben |
Bremse hinten | SRAM, DB-DB8-A1, Vierkolben |
Bremsscheibe vorne | SRAM, DB-Rotor, 180 mm, IS 6-Loch |
Bremsscheibe hinten | SRAM, DB-Rotor, 180 mm, IS 6-Loch |
Sattel | Prologo, Proxim W350 |
Sattelstütze | Limotec, A1 Dropper Post, 125 mm, Aluminium |
Frontlicht | Sate-lite Beleuchtungsset LF-12, Li-ion battery, max. 50 LUX + Messingschlager Reflektorset |
Rücklicht | Sate-lite Beleuchtungsset LR-03K, 200mAh LIR2050 Batterie, 220° Sichtbarkeit |
Akkuschloss | ABUS, BLO SHI IT2 XPLUS |
Pedale | Marwi, SP-160 BL, Aluminium |
Motor | Shimano Steps, DU-EP801, 25km/h, 85 Nm, Mittelmotor |
Akku | Shimano Steps, BT-EN806, 630 Wh, integriert. Leicht entnehmbarer Akku, z. B. zum Laden. |
Display | Shimano Steps, SC-EN600, Bluetooth, ANT Private |
Ladegerät | Shimano Steps, EC-E8004, 42 V DC, 4 A |
Gewicht | Ab 24,0 kg |
Zul. Gesamtgewicht | 130 kg |
Allgemeine Produkthinweise: Preis- und Farbänderungen vorbehalten. TechniBike behält sich vor, benannte Bauteile eines Herstellers bei fehlender Verfügbarkeit durch Gleichwertige eines anderen namhaften Herstellers zu ersetzen. Die Gewichtsangaben der Bikes basieren auf lackierten Vorserienrahmen zum Zeitpunkt der Veröffentlichung, das tatsächliche Gewicht kann ebenfalls hiervon abweichen.
Geometriedaten
Rahmengröße (cm) | 42 | 46 | 50 |
Sitzrohr (mm) | 420 | 460 | 500 |
Oberrohr (mm) | 600 | 640 | 660 |
Steuerrohr (mm) | 150 | 150 | 150 |
Radstand (mm) | 1177 | 1196 | 1237 |
Kettenstrebe (mm) | 460 | 460 | 460 |
Tretlagerhöhe (mm) | 330 | 330 | 330 |
Lenkwinkel (°) | 67 | 67 | 67 |
Sitzwinkel (°) | 74 | 74 | 74 |
Stack (mm) | 620 | 620 | 620 |
Reach (mm) | 422 | 462 | 482 |
Körpergröße (cm) | 160 - 170 | 170 - 180 | 180 - 195 |
Parameter | Wert |
---|
